CLEAVER BROOKS FIRE TUBE BOILER
- Model: 40 HP
GOOD CONDITION
ID # 1051
INCLUDED EQUIPMENT:

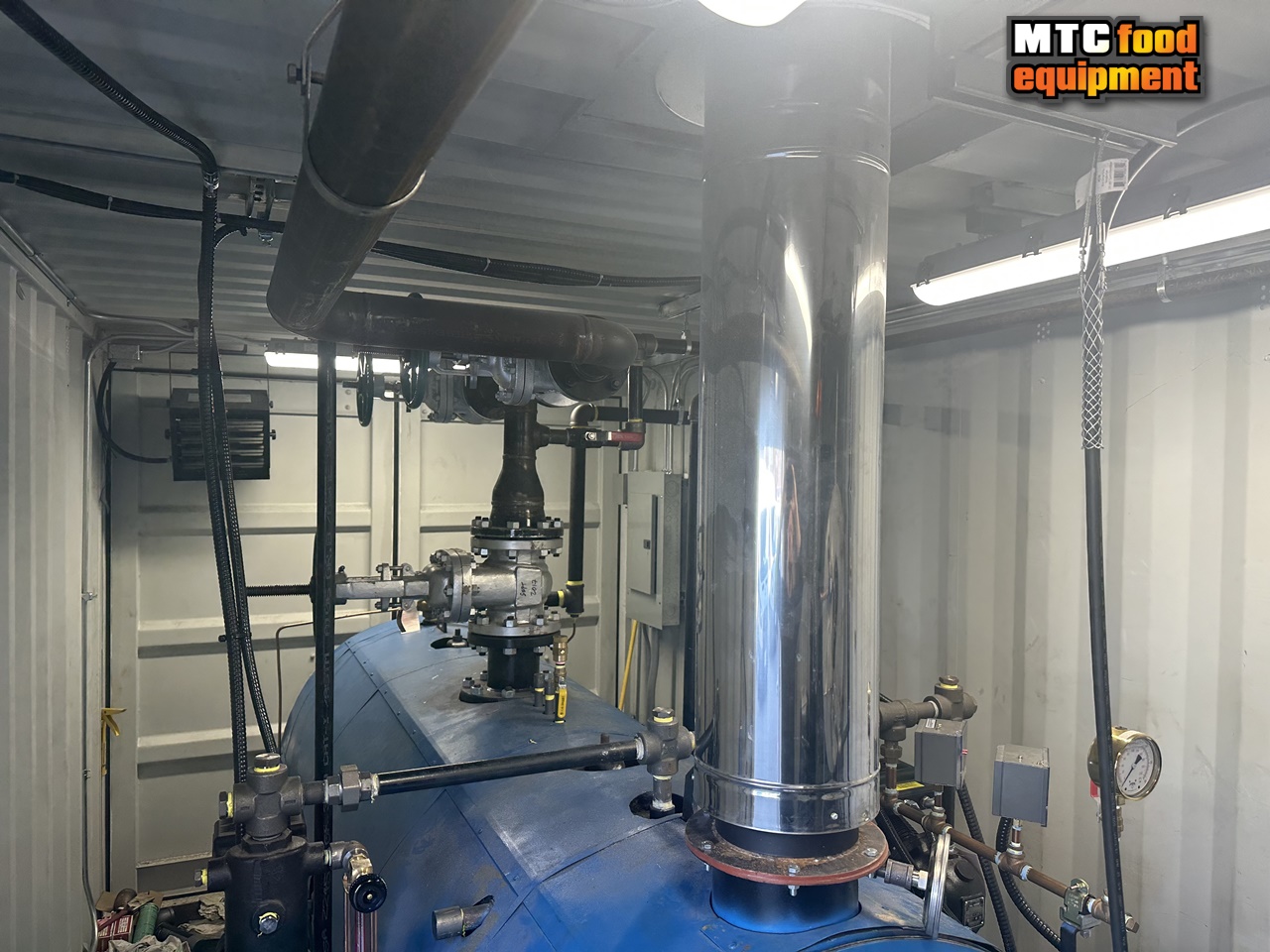

40 HP low-pressure steam mobile rental boiler is designed at 15 psig firing natural gas and #2 oil. It is fully equipped and includes the following:
• Riello RLS 50 Dual Fuel Burner
• LMV-36
• Gas Pressure Regulator
• Valve Trim (headers, safeties, blow down, etc.)
• Control Panel
• Condensate Tank w/ Feed Water Pump & Condensate Return Connections
• Chemical Feed System
• Oil Pump & Motor
• Blow Down Separator
• Interior Lighting
• Electric Space Heaters
• Emergency Stop
• Fire Extinguisher
• Operating Manuals
SPECIFICATIONS
Boiler Mfg: 40hp Cleaver Brooks
Type: Low-Pressure Steam
Fuel Type: Natural Gas & # 2 Oil
Steam: 15 Psi / 30 Psi Water
Steam: 1380 lbs. Per Hour
BTU Input: 1,680,000
Relief Valve Capacity: 1680 lbs./hr.
Electrical: 208/3/ AC/120/1
Water Line: ¾” at 50 Psi
Gas Line: Min 5 Psi
